Description:

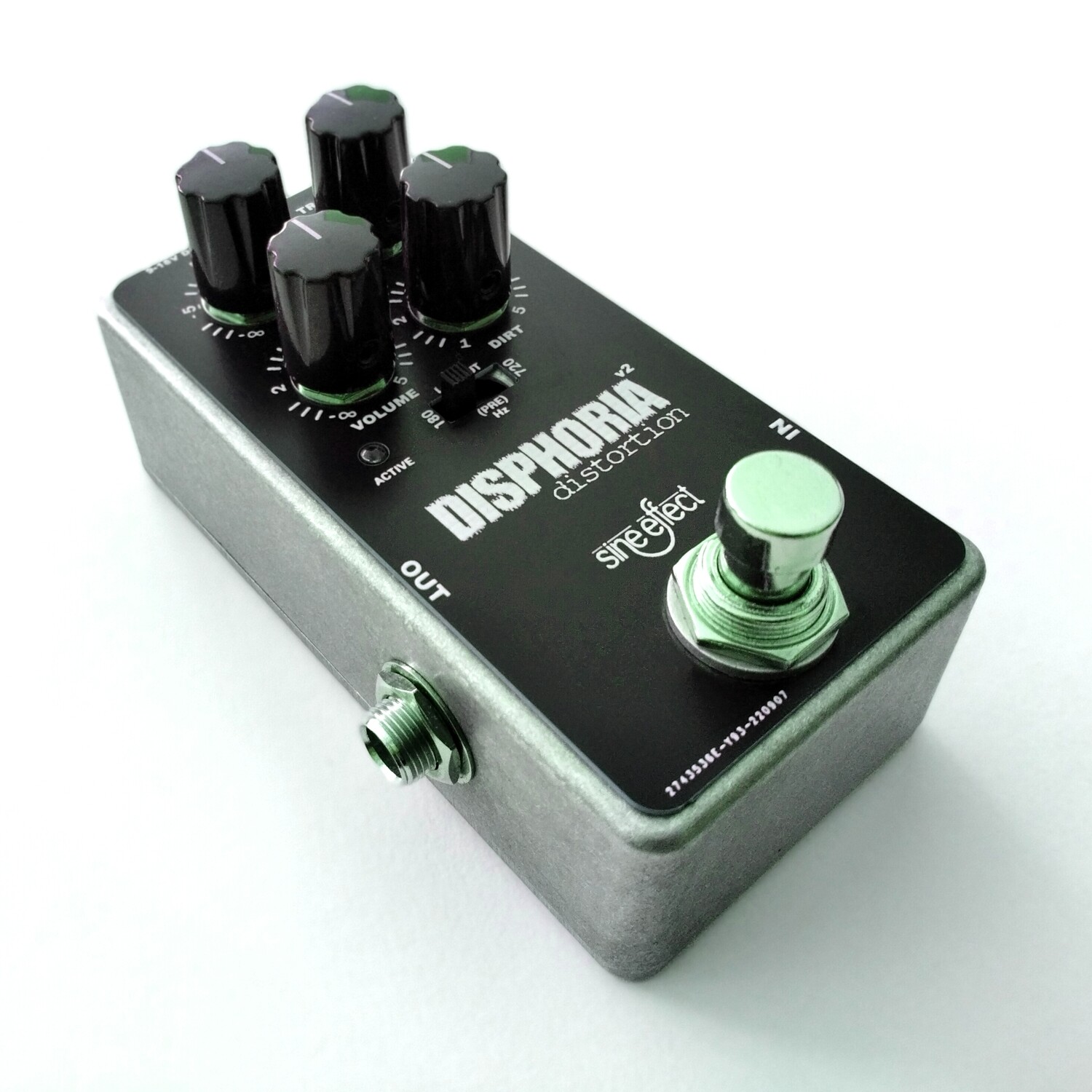

DISPHORIA is back!
DISPHORIA is an unusual, heavy distortion pedal, which hard-clips low frequencies that are usually filtered before being clipped. This quirk, along with a few others, caused the pedal to have a small following for certain genres of metal, even after being retired.
After many years, too many guitarists had asked me to resurrect this evil pedal, and so I decided to design DISPHORIA v2. I aimed to achieve the same tone, more-responsive controls and add a new "LOW CUT" feature to tighten up bass. I feel I have succeeded, and hopefully you will, too!
With Gain, Volume, Bass and Treble controls, True Bypass, a new, compact size (100x50mm) and creative input from professional players, I am very proud to introduce the DISPHORIA v2.
Features:
•Brutal distortion: Up to 60dB of amplification rammed into a 3dB gap.
•New "LOW CUT" switch: Choose which frequencies get distorted
•(180Hz for the bass-heavy, trademark DISPHORIA sound, or tighten up with 720Hz).
•Bass and Treble controls: Slight boosts or deep cuts.
•True Bypass
•Over-engineered to perform well with the rest of your gear.
•Intended for guitar, but that's just a creative choice.
•Small form-factor
•Hand-soldered and assembled in Glasgow, Scotland.
Specifications:
•Operating Voltage: 9-18V DC, centre-negative
•Current Draw: ~12mA
•Input/Output Impedance: 1 Megaohm/100 ohm
•Dimensions: ~105x65x50mm (including sockets and knobs)
Demo:
