Description:

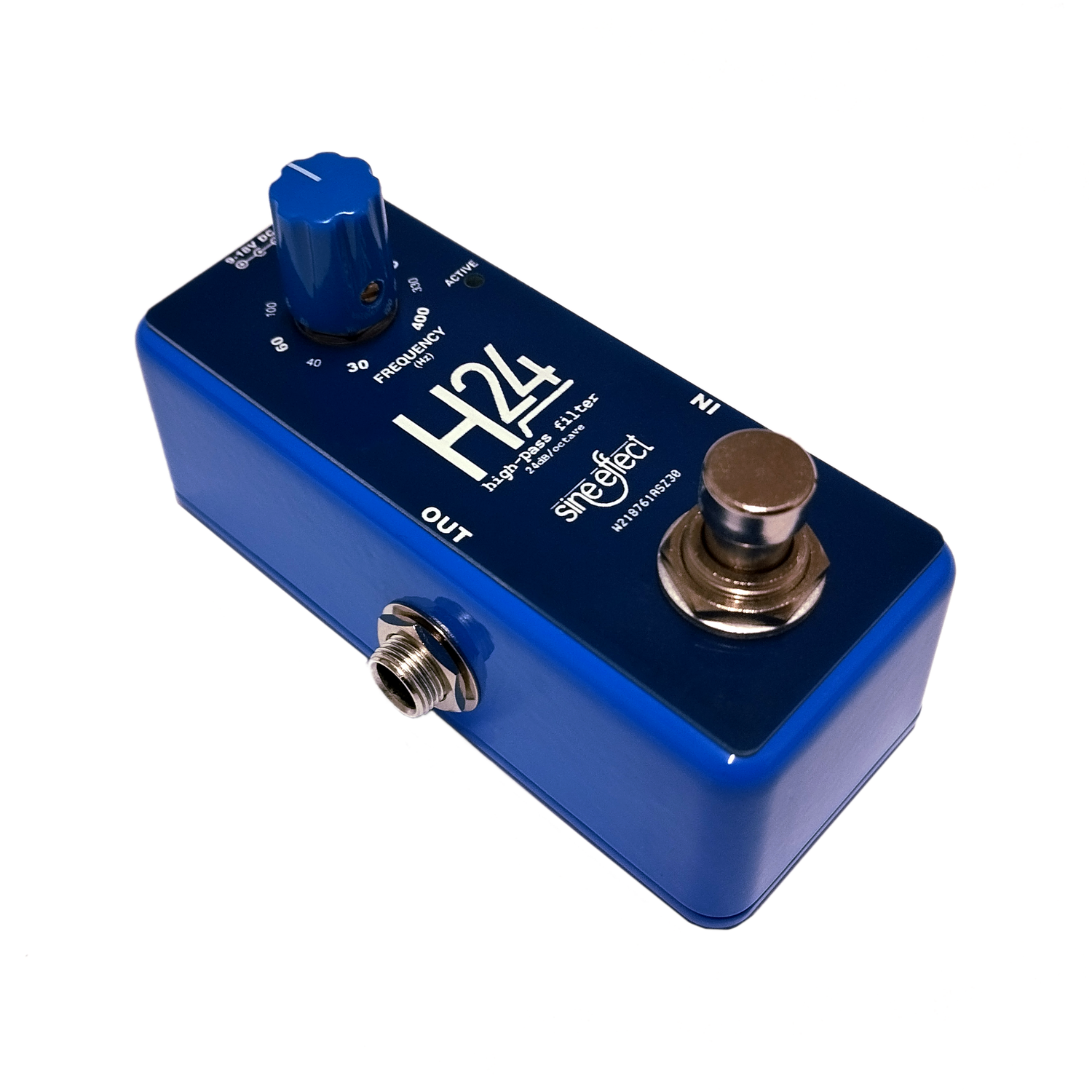

The H24 is a steep high-pass filter pedal by Sine Effect Electronics.
This filter pedal has an adjustable frequency of 30-400Hz, and a slope of 24dB/octave (4th-order).
This pedal is ideal for electric bassists and guitarists who wish to tighten up their low-end. The pedal outputs unity gain and is designed to be low-noise.
Features:
•24dB/octave high-pass filtering
•True bypass
•Hand-matched components
Specifications:
•Supply voltage: 9-18V DC, centre-negative
•Current draw: ~10mA
•Input/Output impedance: 1Mega-ohm/100 ohm
•Noise: <100dB
•Dimensions: ~48x100x50mm (including sockets and knobs)
PLEASE READ:
The H24 pedal has a fixed +3dB recovery gain, to make up for the perceived volume drop when cutting low fundamental frequencies on bass or guitar. In most cases, this is preferred.
In some cases, e.g. you expect to switch the pedal in and out during songs, you may wish this gain to be removed. Also, if you are cutting most of your fundamental frequencies (i.e. the "Frequency" knob is set to 160Hz or above), the steep slope of 24dB/octave may heavily reduce your volume, and you may wish for more gain.
If you would like the pedal to be modified for unity (0dB) or +12dB gain, please send a message and this will be done free of charge, with an extra 1 business day on the dispatch time.
Guitar demo:
Bass demo:
Shipping fee will be added at checkout. All orders are shipped on the next working day (immediately if there is ready-built stock when you place an order, or after completion if there is a build time). All pedals come with a 2-year warranty, for your peace of mind. Click here for warranty info.
Unsure about something? Please read the FAQ or get in touch via. the email at the bottom of every page.
As these pedals are made by hand, there may be some slight imperfections that you wouldn't get from factory robots. Every effort is made to ensure that the pedals look cool and sound good, though!
This product was available for sale in the EU prior to December 13th 2024.
My ethos has always been to create effective, intuitive, reliable and fairly-priced pedals. A good piece of music equipment will allow you to achieve the sounds you hear in your mind without confusion or frustration. EQ pedals are my forte, which are designed using both my own experience as a musician, and input from hundreds of artists who have been kind enough to try Sine Effect pedals over the years.
