Description:

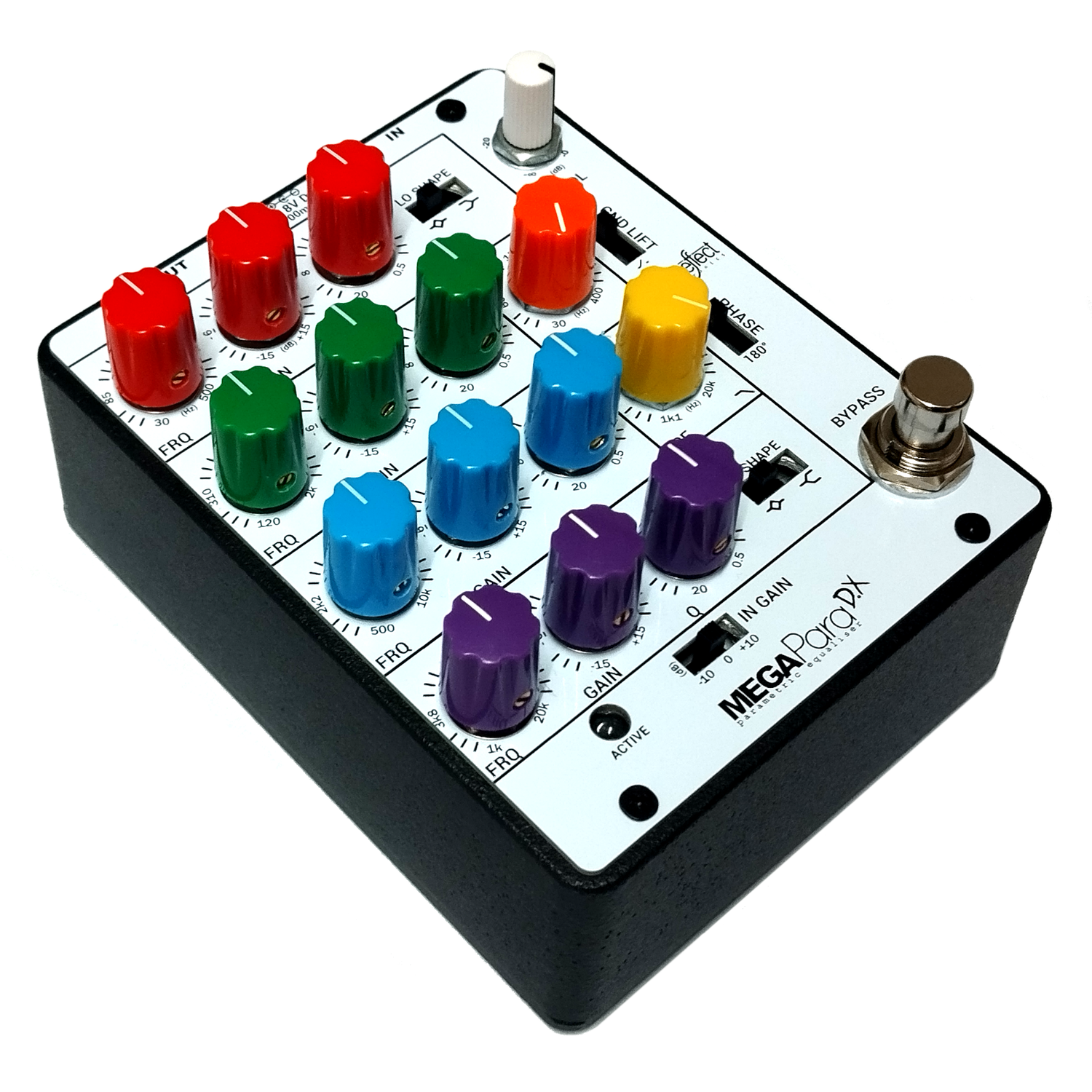

The MegaPara DX is a highly-versatile, 4-band parametric EQ pedal with high and low-pass filters, for electric, acoustic and bass guitar.
This is essentially a single-channel version of the MotherPara pedal.
The MegaPara DX features four bell-curve parametric EQ bands (with the high and low bands being switchable to shelving filters), fully-independent high and low-pass filters, ground lift, phase invert and input pad switches.
Features:
•4 bands ranging from 30Hz to 20KHz, to suit bass, electric or acoustic guitar.
•Switchable Bell-curve/Shelf modes on High and Low bands (+/-15dB gain in both modes).
•High and low pass filters.
•Pad or boost the input by 10dB (true input pad preserves impedance).
•Phase invert switch.
•Ground lift switch.
•True Bypass.
•Very low noise. -105dB.
Specifications:
•Operating Voltage: 9-18V DC mains adaptor (not included). 18V recommended.
•Current Draw: ~50mA.
•Input/Output Impedance: 1 Megaohm/100 ohm.
•Parametric Frequency Ranges: 30-500Hz, 120Hz-2KHz, 500Hz-10KHz, 1-16KHz.
•Filter Frequency Ranges: HPF = 30-400Hz, LPF = 1.1-20KHz.
•Slope: All bands and filters are 12dB/octave.
•Headroom: 16dBu @ 18V (around 30dBu if "Input Gain" set to -10dB).
•Noise: <-105dBu.
•Dimensions: ~12 x 9.4 x 5.8cm (including knob height)
This pedal cannot be used with a 9V battery.
Demo:
Shipping fee will be added at checkout. All orders are shipped on the next working day (immediately if there is ready-built stock when you place an order, or after completion if there is a build time). All pedals come with a 2-year warranty, for your peace of mind. Click here for warranty info.
Unsure about something? Please read the FAQ or get in touch via. the email at the bottom of every page.
This pedal does not use a voltage doubler, because unbeknownst to a surprising number of manufacturers, voltage doublers contain oscillators which mean they are illegal to include in products in some jurisdictions without pricy FCC certification. Additionally, such circuitry can be prone to inducing high-frequency noise and distortion. This pedal does contain circuitry to ensure that your 9 or 18V power supply is rock-solid and well-filtered, and headroom is maximised at both 9 and 18V.
This product was available for sale in the EU prior to December 13th 2024.
My ethos has always been to create effective, intuitive, reliable and fairly-priced pedals. A good piece of music equipment will allow you to achieve the sounds you hear in your mind without confusion or frustration. EQ pedals are my forte, which are designed using both my own experience as a musician, and input from hundreds of artists who have been kind enough to try Sine Effect pedals over the years.
