Description:

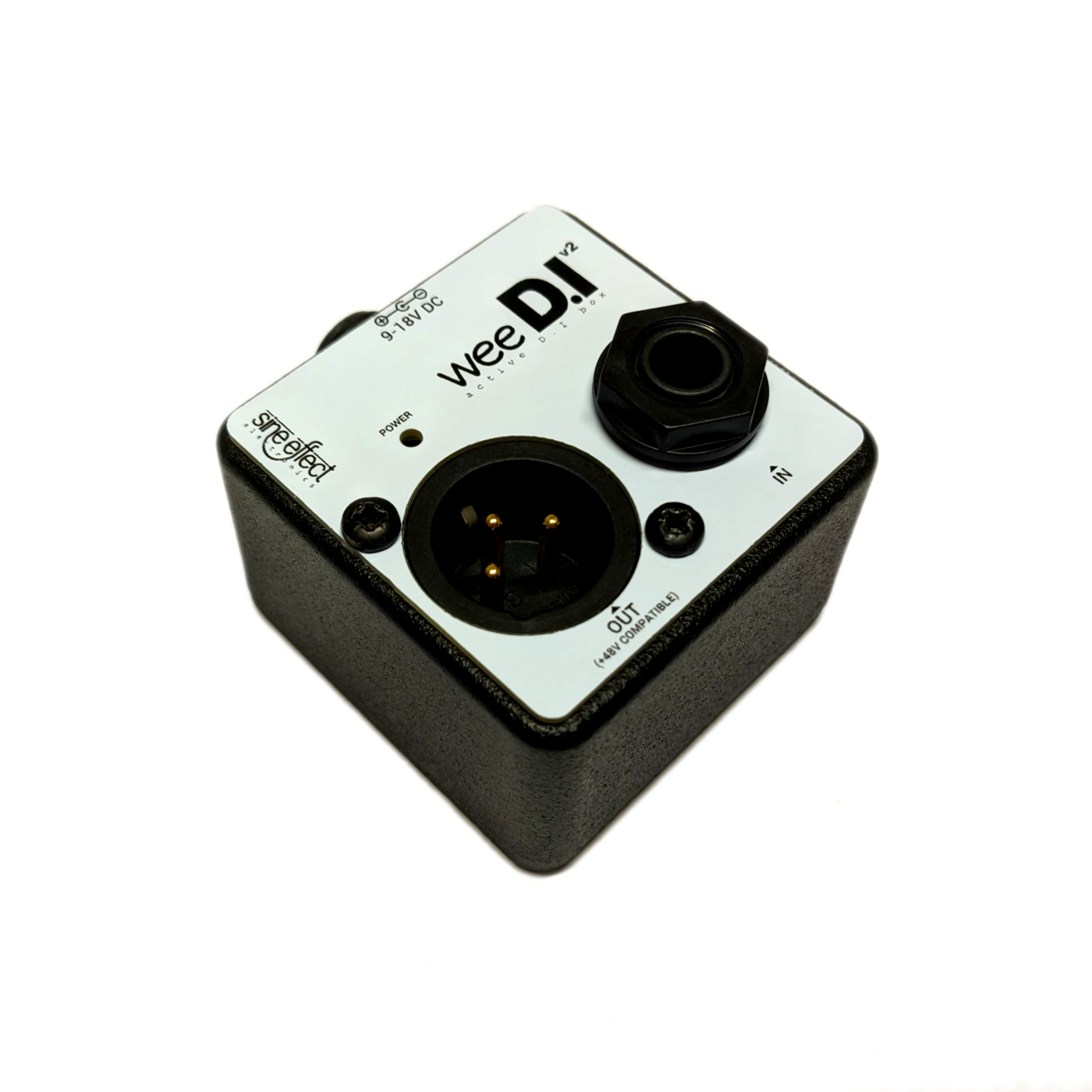

The Wee D.I is an active D.I box with low noise, a small size and the ability to use either +48V phantom power or a standalone DC power supply. Unlike passive, inexpensive D.I boxes, this pedal has a full-spectrum frequency response from 10Hz to 20KHz.
The Wee D.I pedal uses a Neutrik XLR socket, Nichicon capacitors and a modern, low-noise op-amp.
The ground in this pedal is permanently lifted via. a resistor and a capacitor, which should mitigate the majority of ground loop issues while allowing the pedal to function correctly when there is no loop. Phantom power is automatically disconnected when a DC plug is inserted.
Features:
•Low noise.
•Low distortion.
•Tiny.
Specifications:
•Supply voltage: 9-18V DC centre-negative OR +48V phantom power via. the XLR socket.
•Current draw: ~4mA
•Input/Output impedance: 1Mega-ohm/100 ohm
•Headroom: 9dBu @ P48V | 7dBu @ 9V | 16dBu @ 18V
•CMRR: >70dB
•Frequency Response: 10Hz - 20KHz
•Dimensions: 5x5.5x4cm
Demo:
