Description:

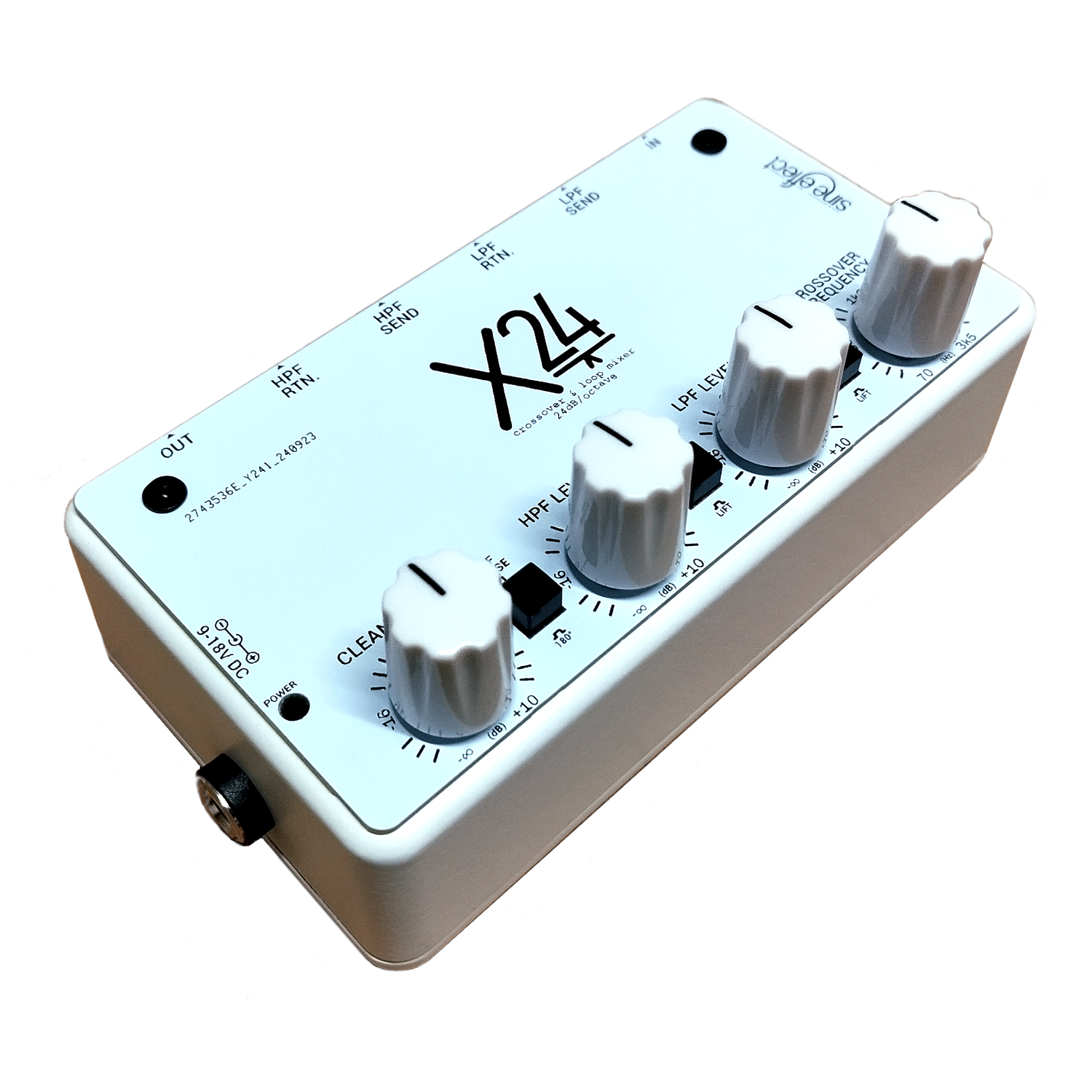

The X24 pedal splits up your signal between highs and lows with a steep, 24dB/octave slope (4th order), and allows you to pass them through other pedals to be mixed back together if needed.
A full-spectrum clean blend can also be mixed with the split signals.
Features:
•Tunable 24dB/octave crossover
•Clean blend
•Phase invert for HPF channel
•Ground lifts
•Low noise
Specifications:
•Supply voltage: 9-18V DC, centre-negative
•Current draw: ~35mA
•Crossover frequency range: 70Hz-3.5KHz
•Input/Output impedance (all inputs/outputs): 1Mega-ohm/100 ohm
•Frequency response (mixer and clean blend): 20Hz-20KHz
•Dimensions: ~60x112x46mm (including sockets and knobs)
Demos:
Guitar demo:
Bass demo coming soon!
