Description:

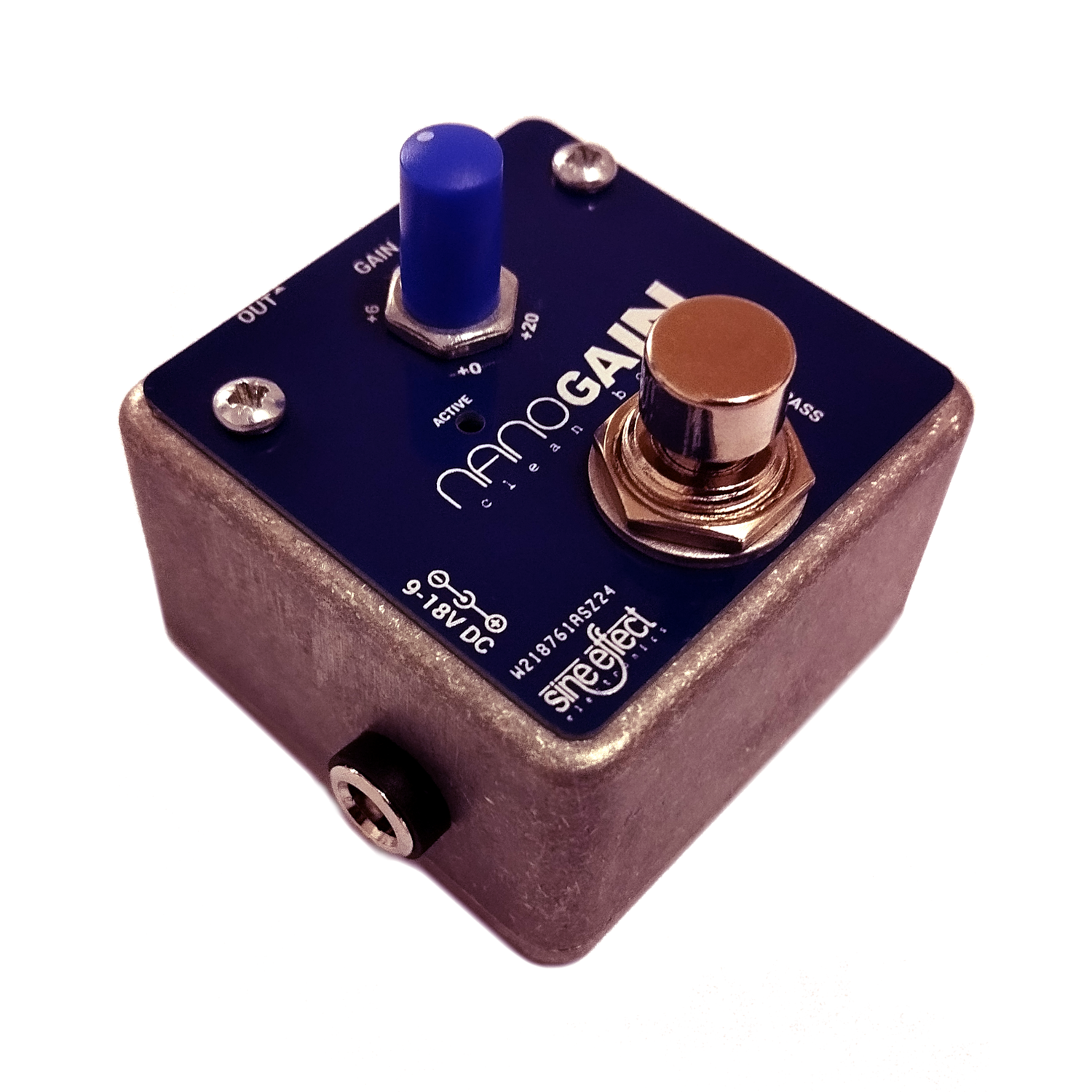

The nanoGain is a small, no-nonsense clean boost pedal. The pedal uses a low-noise op-amp circuit for reliable, precise signal boosting, regardless of its small size. The nanoGain has been designed to achieve a good balance of performance with cost.
Built into a 5x5cm (1.97") enclosure, you should find the nanoDryve to be flexible and effective without taking up much space.
Features:
•Up to +20dB of clean gain.
•True Bypass.
•Low THD+Noise.
•Tiny.
Specifications:
•Supply voltage: 9-18V DC, centre-negative
•Current draw: ~10mA
•Input/Output impedance: 1Mega-ohm/100 ohm
•Headroom: 7dBu @ 9V, 16dBu @ 18V
•Frequency Response: 3Hz - 12KHz
•Dimensions: 5x5x4cm
Demo:
Shipping fee will be added at checkout. All orders are shipped on the next working day (immediately if there is ready-built stock when you place an order, or after completion if there is a build time). Click here for warranty info.
Unsure about something? Please read the FAQ or get in touch via. the email at the bottom of every page.
This product was available for sale in the EU prior to December 13th 2024.
